Photon Design Harold


Harold


A hetero-structure laser diode model

Harold 와 PICWave 내에서 가져올 수 있는 진보된 헤테로 구조 모델입니다.

1D 모드에서, HAROLD는 임의의 수직 복합 구조와 조합을 가진 Quantum well laser를 위해 수직 방향에 있어 미분방정식을
차용하여 풀어냅니다. 단일 및 Quantum well lasers 둘 다 모델이 될 수 있습니다. Quantum wells에서 캐리어를 위해 최첨단의
capture/escape 모델은 이행됩니다. Pulsed (isothermal) 와 CW (self-heating) 동작 조건 둘 다는 시뮬레이션 될 수 있습니다.
재료는 삼중, 사중 합금을 포함합니다.

2D 모드에서, Harold는 Fabry-Perot cavities를 위해 Longitudinal를 모델링 할 수 있다.

특징

ㆍElectrical model: 전자와 전공을 위한 포아송 방정식, 확산 이동의 조리 정연한 솔루션

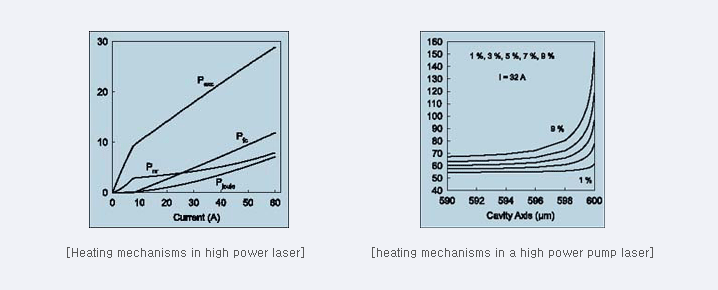

ㆍThermal model: 기판, 메탈 접촉과 히트싱크를 포함하는 열유동
ㆍOptical model: Laser cavity의 광학모드에 따라 광자를 분산하는 모델.
ㆍCapture/escape
ㆍQuaternary alloys: 4중 혼합물 이용
ㆍGain model: Quantum well lasers를 위한 재료 이득은 파라볼릭 밴드 근사를 이용한 파장과 캐리어 농도의 기능으로서 연산된다.
ㆍRecombination
ㆍSurface recombination
ㆍBandgap narrowing
ㆍQuantum well: 슈뢰딩거 방정식을 풀어서 에너지 레벨을 결정한다.
ㆍStrain
ㆍThermal overhang
ㆍNon-injecting mirror
ㆍAbsorbing mirror
